Business Introduction
Why choose PRISM Technology?
Why PRISM ?
Possess >100nm nano pigment dispersion Technology & Ink Technology

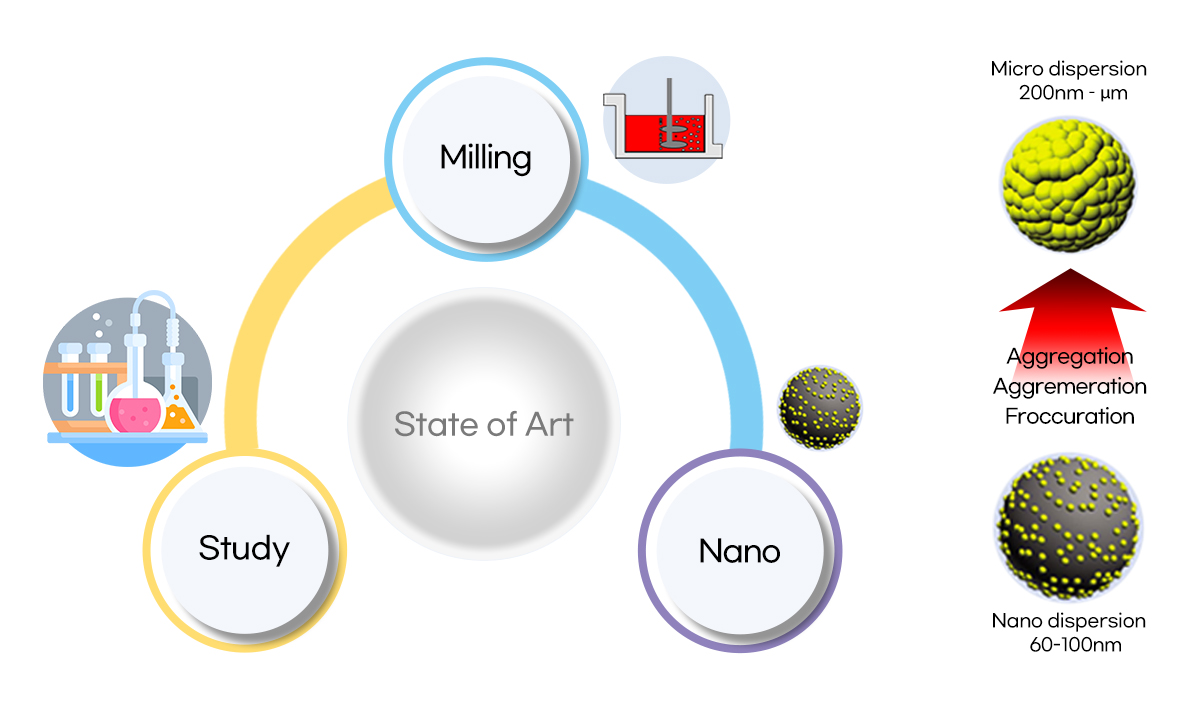

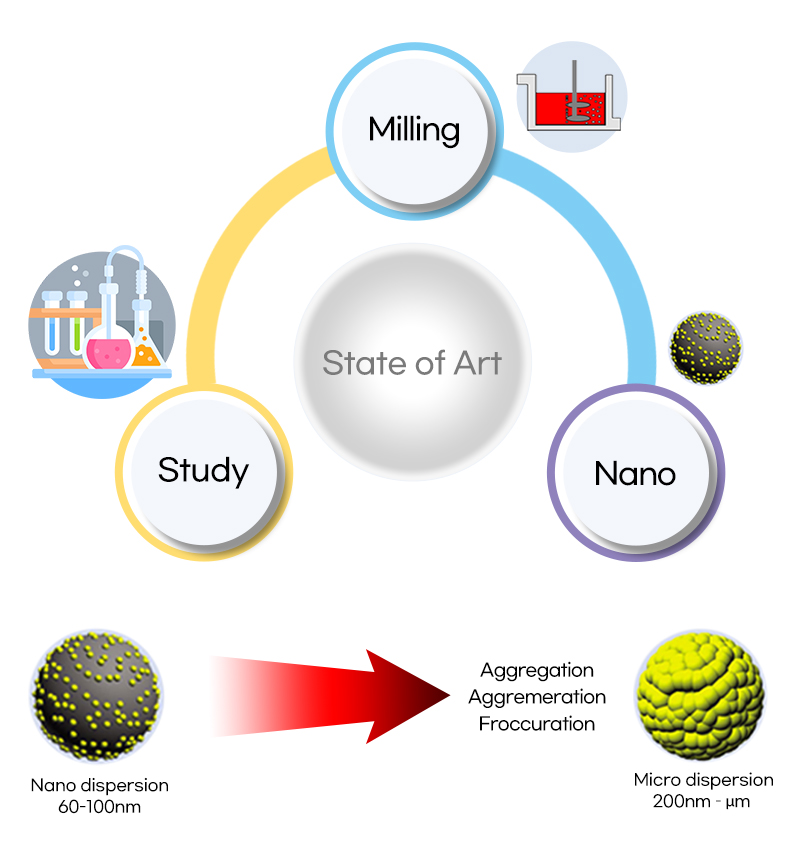

Why require to nano dispersion?
Dispersion of nano size is need to take good color gamut without nozzle clog
However, it is not attained by just milling. It’s “State of Art Chemistry”
Dispersion of nano size is need to take good color gamut without nozzle clog
However, it is not attained by just milling. It’s “State of Art Chemistry”
Compare to others

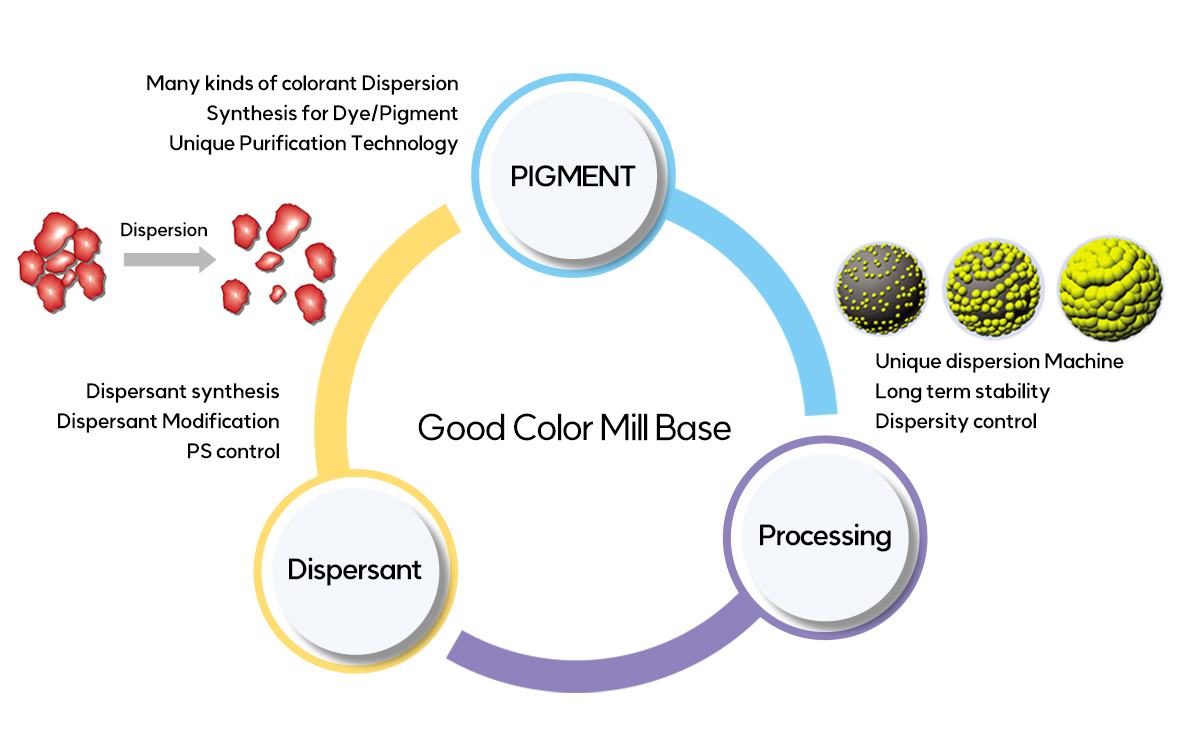

Unique color dispersion and color matching technology
| Inks | Item | OEM | PRISM | Others |
|---|---|---|---|---|
| Pigment Ink | Pigment | Pure Pigment | Pure Pigment | Modified Pigment |
| Dispersion | Own | Own | Purchase MB | |
| Particle Size | 90 - 100nm | 90 - 100nm | 120-150nm | |
| Precipitation | None | None | None | |
| Stability | Over 1 year | Over 1 year | Less 1 year | |
| Optical Density(Black) | Over 1.50 | Over 1.55 | Over 1.40 | |
| Affinity to Coated Paper | ○ | ○ | △ | |
| Clogging | > 7day | > 10day | > 7day | |
| Dye Ink | Colority (vs OEM shade) | - | ± 3.0 | ± 5.0 |
| Bleeding | ○ | ○ | △ | |
| Clogging | ○ | ○ | △ | |
| Jettability | ○ | ○ | ○ | |
| Light Fastness | ○ | ○ | △ |
Pure pigment ink vs Modified pigment
The Technical Difference Between Ink Made from Pure Pigments and Modified Pigment Inks
| Items | Good Pure Pigment (PRISM) | Normal Pure Pigment | Modified Pigment |
|---|---|---|---|
| Particle size | 80-120nm | 100-200nm | 80-150nm |
| Stability | Over 1 Year | Under 3 Month | Over 1 Year |
| Merit | Vivid color and Fastness | Good color and Fastness | Good color and stability |
| Demerit | High Technology | Nozzle Clogging | Low Fastness |
| 비고 |  |
 |
 |
Particle Size Distribution
PRISM
PS : 91.7nm / PDI : 0.252
E co.
PS : 89.7nm / PDI : 0.265
S co.
PS : 143.1nm / PDI : 0.452
Ink for CISS
High flowability and stability inks to use in CISS Special Needs for CISS
- Light : attack to colorant.
- Vaporize : change of ink properties.
Inks can change in CIS
- High light fastness dye
- High formulation stability
- Macro scale Fluidit
- No gas in Ink
Required to special properties
Why PIRMS Ink with CISS?
- Good Ink flowability use in CISS.
- No stabilized time after installing of CISS
- High fastness dye and stable pigment ink
